Rotary Integral 3000mm Hydraulic Water Well Drilling Rig

  • 1
  • 2

Brand Name : JCDRILL

Model Number : CSD200A

Certification : ISO, CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 3000sets/month

Delivery Time : 15days

Packaging Details : standard package for shipping by sea or accordign to customers'requirement

Model : CSD200A

Drilling Type : DTH & Mud Rotary

Drill system and operation : Hydraulic

Hole Diameter : Φ140—Φ450mm

Hole Depth : 200m

Rotation Torque : 3050-6100Nm

Rotation Speed : 60-120rpm

Drill pipe diameter : 89/102/114

Drill pipe length : 3000/4500mm

Max.Pull down capacity : 85KN

Max.Pull back capacity : 16T

Contact Now

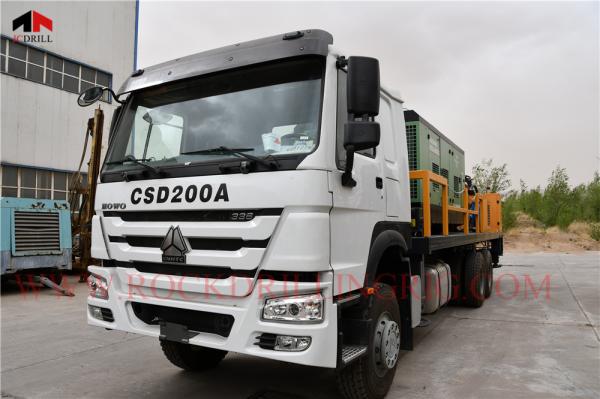

CSD200A Truck Mounted Water Well Drilling Rig

1 Geology drilled All kinds
2 Drilling Type DTH & Mud Rotary
3 Drill system and operation Hydraulic
4 Hole Diameter mm Φ140-Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 4800-6500
7 Rotation Speed rpm 60-120
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 4000/4500
10 Max.Push down capacity T 5
11 Max.Pull up capacity T 16
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 70
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.05-4.5
21 Air consumption m³/min 16-60
Truck
22 Manufacturer SINOTRUCK HOWO
23 Model ZZ1257M5847C
24 Engine WD615.93C
25 Rated Horse power Hp 290
26 Discharge Standard EU-2
27 Drive type 6*4
28 Max.Speed Km/h 102.9
29 Steering wheel left/right(Optional)
Mud Pump
30 Power Type Diesel engine
31 Model BW450
32 Stroke mm 110
33 Displacement L/Min 450
34 Discharge pressure (Mpa) Mpa 5
Dimension
35 Net Weight T 20
36 Shipping Length mm 11200
37 Shipping Width mm 2500
38 Shipping Height mm 3200
39 Working size(L*W*H) mm 11000*2480*7147

Pictures
Rotary Integral 3000mm Hydraulic Water Well Drilling Rig

Rotary Integral 3000mm Hydraulic Water Well Drilling Rig

Rotary Integral 3000mm Hydraulic Water Well Drilling Rig

Rotary Integral 3000mm Hydraulic Water Well Drilling Rig

Packing & Delivery

​Rotary Integral 3000mm Hydraulic Water Well Drilling Rig

Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
Certificate
Rotary Integral 3000mm Hydraulic Water Well Drilling Rig
